Sleeping demon blinker

The Project

An interesting circuit built around CMos IC 4011 is discussed here. This circuit is very famous at the most of the school/college exhibitions and as such it is a very favourite circuit among students, hobbyists and novice.

In the common usage this circuit is used to scare visitors to the exhibition who happens to touch the face or head of a animal like dog or a demon doll. The red LED placed on the forehead of a fierce-full dog blinks vigorously as if it gets angry when touched its fore head. Especially the children and small kids gets fascinated to see this scene.

Circuit description

Easy to build using single IC 4011

When the sensors A & B are jointly touched the LEDs begin to blink

Used it as blinker

Angry man or angry dog or sleeping demon can be taken as examples

Two red LEDs will be fixed as eyes of a dog. Sensor is placed on its head. When head is touched the dog begins to blink. So also man/demon etc.

very few components are used.

Parts list:

U1 – IC 4011

R1 – 5M ohms – Resistor

R2 – 3.3K ohms – Resistor

C1 – 3.3 MFD/16V capacitor

LED1, LED2 – Light Emitting Diodes

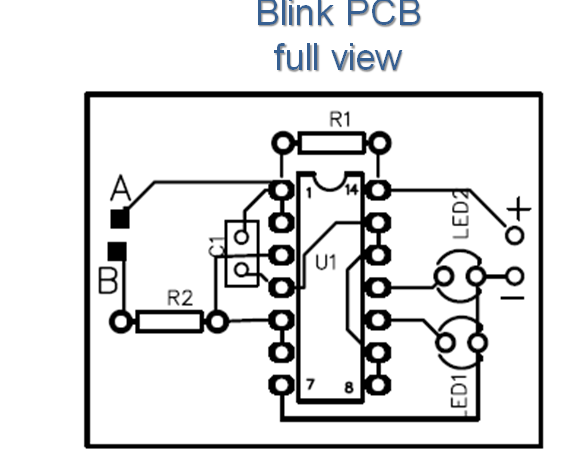

This ready made PCB can be easily fabricated abd the circuit assembled on it. This circuit is presented here on the demands of many electronics enthusiasts and students.
